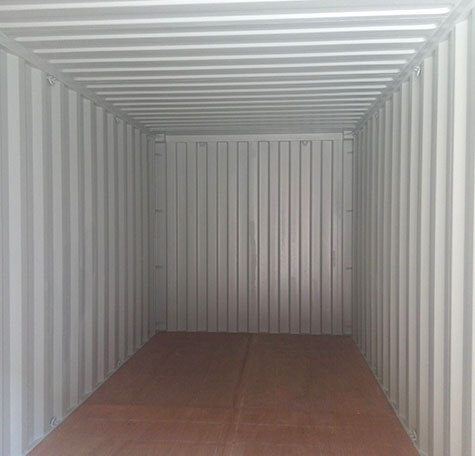

干货箱

箱型尺寸

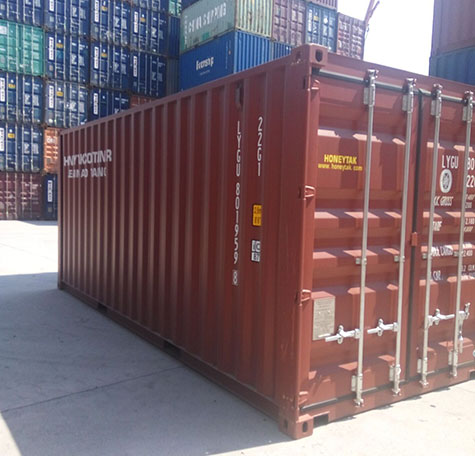

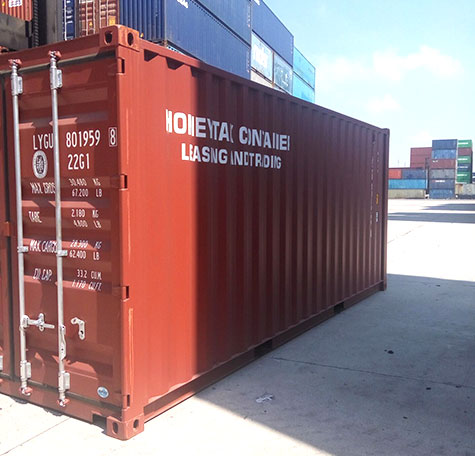

20' Standard

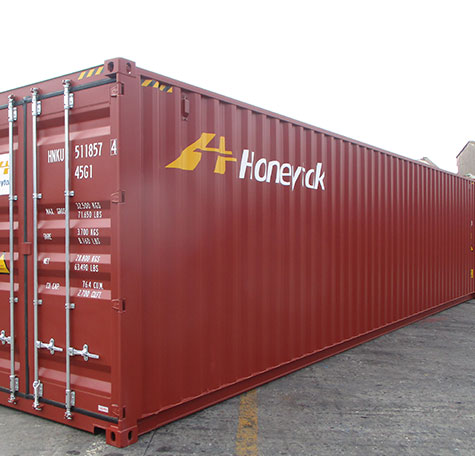

40' Standard

40' High Cube

45' High Cube

总重

30,480 kg (67,200 lb.)

32,500 kg (71,650 lb.)

32,500 kg (71,650 lb.)

32,500 kg (71,650 lb.)

净重

2,180 kg ( 4,800 lb.)

3,700 kg ( 8,168 lb.)

3,890 kg ( 8,587 lb.)

4,700 kg (10,360 lb.)

最大承重

28,300 kg (62,400 lb.)

28,800 kg (63,482 lb.)

28,610 kg (63,063 lb.)

27,800 kg (61,290 lb.)

外形尺寸

长度

6,058 mm (19'-10½")

12,192 mm (40'-0")

12,192 mm (40'-0")

13,716 mm (45'-0")

宽度

2,438 mm (8'-0")

2,438 mm (8'-0")

2,438 mm (8'-0")

2,438 mm (8'-0")

高度

2,591 mm (8'-6")

2,591 mm (8'-6")

2,896 mm (9'-6")

2,896 mm (9'-6")

内部尺寸

长度

5,900 mm (19'-4¼")

12,025 mm (39'-5½")

12,025 mm (39'-5½")

13,556 mm (44'-5 11/16")

宽度

2,348 mm (7'-8½")

2,348 mm (7'-8½")

2,348 mm (7'-8½")

2,352 mm (7'-8 9/16")

高度

2,385 mm (7'-9 7/8")

2,385 mm (7'-9 7/8")

2,690 mm (8'-9 7/8")

2,698 mm (8'-10 1/4")

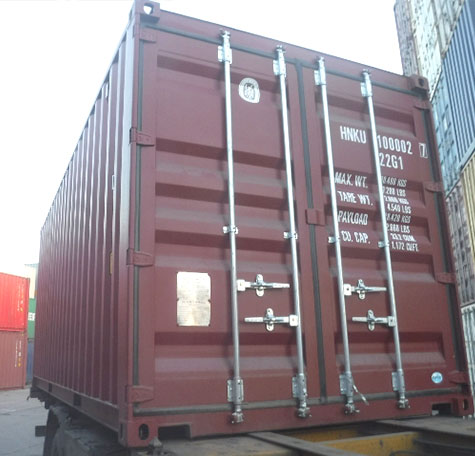

开门

宽度

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

高度

2,275 mm (7'-5 5/8")

2,275 mm (7'-5 5/8")

2,578 mm (8'-5½")

2,585 mm (8'-5 13/16")

体积容量

33.04 m³ (1,166 ft.³)

67.34 m³ (2,377 ft.³)

75.95 m³ (2,681 ft.³)

86.0 m³ (3,040 ft.³)

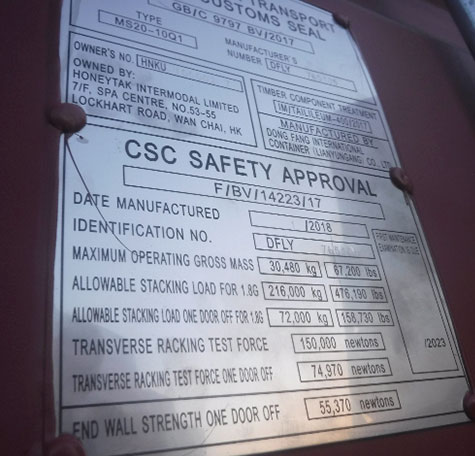

测试负载

负载

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

横向刚性实验力

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

纵向刚性实验力

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

地板负载

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)
