冷藏箱

40' High Cube Reefers

    冷藏集装箱具有装卸灵活、货物运输温度稳定，货物污染、损失低，适用于多种运载工具，装卸速度快，运输时间短，运输费用低。

    预览：冷藏箱特点和规格

  • 下载 PDF
特点 优点

更高有效载荷- 35吨MGW(40英尺货柜)

更大载货能力

热锌喷镀框架(HSG)

耐蚀性高，维修少，美观大方

嵌入波纹不锈钢(MGSS)‐带有额外的内部钢筋；40尺集装箱有5个额外的荷载构件

增加集装箱和地面之间的间隙。不损坏横梁，重量轻，腐蚀小。延长集装箱的使用寿命，减少维修

外层为不锈钢(MGSS)

更少的腐蚀，更好的外观，更少的维护

优质不锈钢(HGSS)内胆

耐冲击、耐腐蚀、耐化学腐蚀

挤压铝耐磨衬套

为侧壁提供额外的刚性，并防止损坏

前壁上有凹进去的空气挡板

由于过渡平稳，增加了空气流量，不易损坏

为tectrol轨道准备的接口

可安装tectrol轨道

较厚的端板，额外的侧柱和额外的Corten钢加强

提供额外的强度和尽量减少分层

前槛和后槛上的凹槽

减少操作过程中对底梁的损坏

角件强度加强

可以减少装卸过程中的损坏

优质油漆系统，保修期5年

整个容器的外部涂上聚氨酯/丙烯酸漆。不使用沥青底涂层

自动排水

不易损坏

其他相关认证:ATO/sprenger institute, USDA合规，ATP认证和污染测试(BS 3755)

完全认证，以适应不同类型的货物

Ratings

20' Standard Reefers

40' High Cube Reefers

Maximum Gross Weight

30,480 kg (67,200 lb.)

35,000 kg (77,160 lb.)

Tare Weights:

excluding reefer unit

2,600 kg (5,732 lb.)

4,180 kg (9,220 lb.))

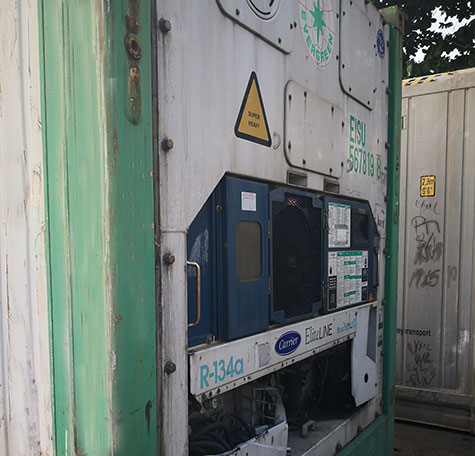

with Carrier PrimeLINE

3,030 kg (6,680 lb.))

4,600 kg (10,140 lb.)

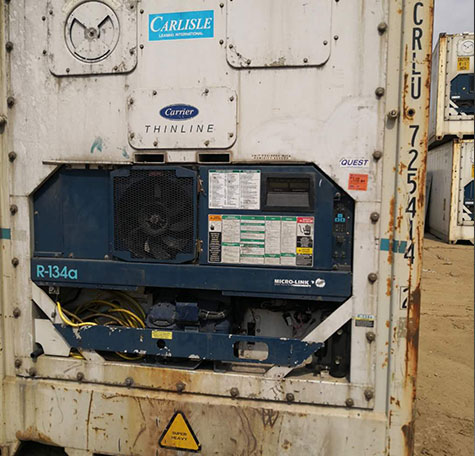

with Carrier ThinLINE

3,130 kg (6,900 lb.)

4,710 kg (10,380 lb.)

with Daikin

3,060 kg (6,750 lb.)

4,640 kg (10,230 lb.)

with Thermo King Magnum

3,010 kg (6,640 lb.)

4,600 kg (10,140 lb.)

Max. Payloads:

with Carrier PrimeLINE

27,450 kg (60,520 lb.)

30,400 kg (67,020 lb.))

with Carrier ThinLINE

27,350 kg (60,296 lb.))

30,290 kg (66,780 lb.))

with Daikin

27,420 kg (60,450 lb.)

30,360 kg (66,930 lb.))

with Thermo King Magnum

27,470 kg (60,560 lb.)

30,400 kg (67,020 lb.)

Internal Cubic Capacity

28.4 cu.m (1,005 cu.ft)

67.9 cu.m (2,400 cu.ft))

Stacking Test Load

102,375 kgs/post (225,690 lbs/post)

102,375 kgs/post (225,690 lbs/post)

Heat Leakage, U-Value

Max. 22 kcal/h°C

Max. 35 kcal/h°C

Air Leakage

3.5m/h(at 25.4 mm H20)

3.5m/h(at 25.4 mm H20)

External Dimensions

Length

6,058 mm (19'-10 1/2")

12,192 mm (40'-0")

Width

2,438 mm (8'-0")

2,438 mm (8'-0")

Height

2,591 mm (8'-6 0/10")

2,896 mm (9'-6 0/10")

Internal Dimensions

Length

5,456 mm (17'-10 13/16")

11,590 mm (38'-0 5/16")

Width

2,290 mm (7'-6 3/16")

2,290 mm (7'-6 3/16")

Height

2,276 mm (7'-5 11/16")

2,557 mm (8'-4 11/16")

Door Opening

Width

2,290 mm (7'-6 3/16")

2,290 mm (7'-6 3/16")

Height

2,264 mm (7'-5 1/8")

2,569 mm (8'-5 3/16")

Cargo Access Height

2,224 mm (7'-3 9/16")

2,506 mm (8'-2 11/16")

External Cladding

Side

MGSS 1.0/1.2 mm

MGSS 1.0/1.2 mm

Roof

MGSS 0.8 mm

MGSS 0.8 mm

MGSS 1.2 mm

MGSS 1.0 mm

Door

MGSS 1.6 mm

MGSS 1.6 mm

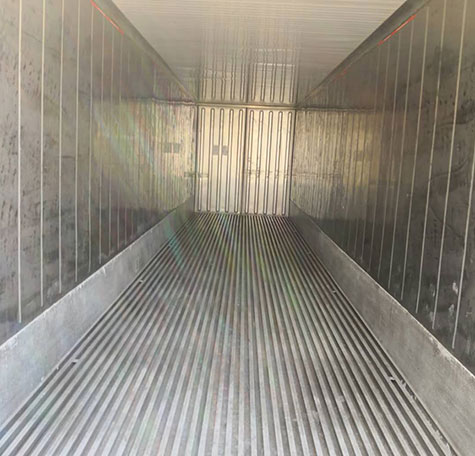

Internal Cladding

Side

HGSS 0.7 mm

HGSS 0.7 mm

Roof

P.P white AI. 0.8 mm

P.P white AI. 0.8 mm

40 mm high AI. T-floor

63.5 mm high AI. T-floor

Door

HGSS 0.7 mm

HGSS 0.7 mm

Frames

Front Corner Posts

Outer: Corten 6.0 mm; Inner Corten 3.0 mm

Outer: Corten 6.0 mm; Inner Corten 8.0 mm

Rear Corner Posts

Outer: Corten 6.0 mm; Inner Corten 3.0 mm

Outer: Corten 6.0 mm; Inner Corten 8.0 mm

End Rails

Corten 4.0 mm

Corten 4.0 mm

Side Top Rail

Corten 4.0 mm

Corten 4.0 mm

Side Bottom Rail

Corten 4.0 mm

Corten 4.0 mm
