REEFER CONTAINERS

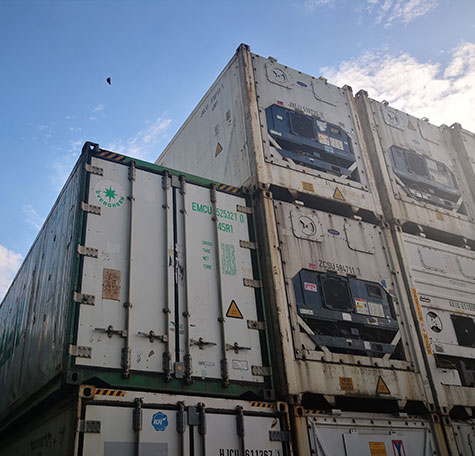

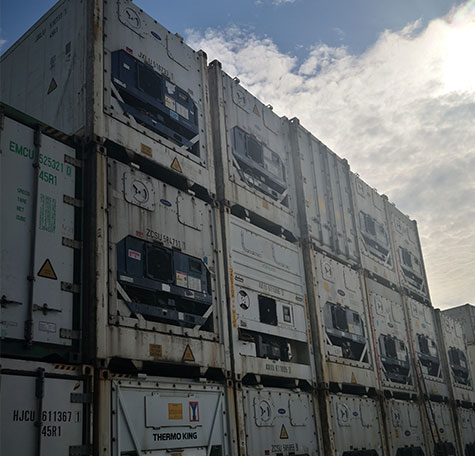

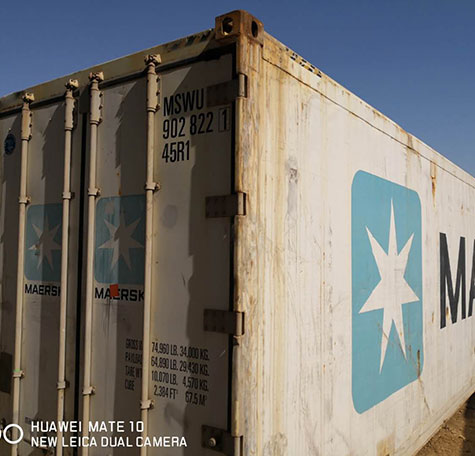

40' High Cube Reefers

    These shipping containers are used for temperature control, particularly with freezer and chiller cargo and come in various sizes to suit your needs. All of our brand new reefers shipping containers are built to the highest specifications and come with the most modern temperature control technology. New and Used Reefer shipping containers. High quality specifications to ensure strength and maximum rust protection. Fully wind/water tight and securable. ISO standards suitable for transport via road, rail and sea. Equipped with Forklift Pockets for easy handling.

    Preview：Refrigerated Container features&specification

  • Download PDF
Features Benefits

Higher payload – 35 ton MGW (40ft containers)

More cargo carrying capacity

Corten Frames with Hot Zinc Spray Galvanizing (HSG).

Higher corrosion resistance, less maintenance, better appearance

Recessed corrugated stainless steel (MGSS) under‐floor with additional internal reinforcements and 5 load transfer members (on 40ft containers)

More clearance between sub floor and ground. No damage to crossmembers, lighter weight and less corrosion. Extend life of container and minimized repairs

Stainless steel (MGSS) outer cladding

Less corrosion, better appearance, less maintenance

High grade stainless steel (HGSS) interior linings

High impact resistance, corrosion and chemical resistance

Extruded Aluminum Scuff Liner

Provides additional rigidity to side wall and protection from loading damages

Recessed air barffle into front wall

Increased air flow due to smooth transition, less prone to damage

Provisioned for tectrol track

Ready for installation of optional tectrol track

Thicker end side panels, additional side posts and additional Corten steel omega reinforcements

Provide additional strength and minimize delamination

Recessed area (cut cuts) on front and rear sills

Eliminate damages to end sills from frequent chassis operation damages

Reinforced roof plates at corner posts

Minimize damages from handling equipment to roof and headers

High grade paint system with 5 year warranty

Urethane/acrylic paint throughout the exterior of the container. No bituminous undercoat used

Automated drain plugs

Less prone to damage

Additional certifications: ATO/sprenger institute, USDA compliant, ATP certified and taint test Taint Test (BS 3755)

Full certification to accommodate all types of cargos

Ratings

20' Standard Reefers

40' High Cube Reefers

Maximum Gross Weight

30,480 kg (67,200 lb.)

35,000 kg (77,160 lb.)

Tare Weights:

excluding reefer unit

2,600 kg (5,732 lb.)

4,180 kg (9,220 lb.))

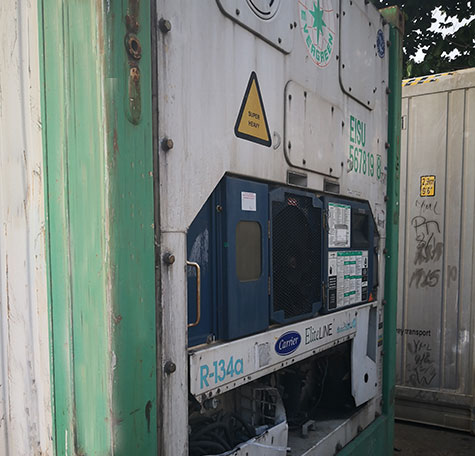

with Carrier PrimeLINE

3,030 kg (6,680 lb.))

4,600 kg (10,140 lb.)

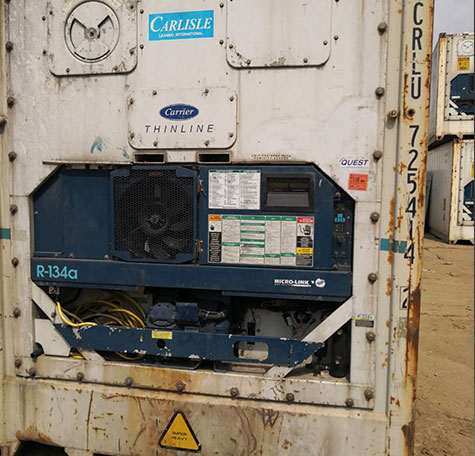

with Carrier ThinLINE

3,130 kg (6,900 lb.)

4,710 kg (10,380 lb.)

with Daikin

3,060 kg (6,750 lb.)

4,640 kg (10,230 lb.)

with Thermo King Magnum

3,010 kg (6,640 lb.)

4,600 kg (10,140 lb.)

Max. Payloads:

with Carrier PrimeLINE

27,450 kg (60,520 lb.)

30,400 kg (67,020 lb.))

with Carrier ThinLINE

27,350 kg (60,296 lb.))

30,290 kg (66,780 lb.))

with Daikin

27,420 kg (60,450 lb.)

30,360 kg (66,930 lb.))

with Thermo King Magnum

27,470 kg (60,560 lb.)

30,400 kg (67,020 lb.)

Internal Cubic Capacity

28.4 cu.m (1,005 cu.ft)

67.9 cu.m (2,400 cu.ft))

Stacking Test Load

102,375 kgs/post (225,690 lbs/post)

102,375 kgs/post (225,690 lbs/post)

Heat Leakage, U-Value

Max. 22 kcal/h°C

Max. 35 kcal/h°C

Air Leakage

3.5m/h(at 25.4 mm H20)

3.5m/h(at 25.4 mm H20)

External Dimensions

Length

6,058 mm (19'-10 1/2")

12,192 mm (40'-0")

Width

2,438 mm (8'-0")

2,438 mm (8'-0")

Height

2,591 mm (8'-6 0/10")

2,896 mm (9'-6 0/10")

Internal Dimensions

Length

5,456 mm (17'-10 13/16")

11,590 mm (38'-0 5/16")

Width

2,290 mm (7'-6 3/16")

2,290 mm (7'-6 3/16")

Height

2,276 mm (7'-5 11/16")

2,557 mm (8'-4 11/16")

Door Opening

Width

2,290 mm (7'-6 3/16")

2,290 mm (7'-6 3/16")

Height

2,264 mm (7'-5 1/8")

2,569 mm (8'-5 3/16")

Cargo Access Height

2,224 mm (7'-3 9/16")

2,506 mm (8'-2 11/16")

External Cladding

Side

MGSS 1.0/1.2 mm

MGSS 1.0/1.2 mm

Roof

MGSS 0.8 mm

MGSS 0.8 mm

MGSS 1.2 mm

MGSS 1.0 mm

Door

MGSS 1.6 mm

MGSS 1.6 mm

Internal Cladding

Side

HGSS 0.7 mm

HGSS 0.7 mm

Roof

P.P white AI. 0.8 mm

P.P white AI. 0.8 mm

40 mm high AI. T-floor

63.5 mm high AI. T-floor

Door

HGSS 0.7 mm

HGSS 0.7 mm

Frames

Front Corner Posts

Outer: Corten 6.0 mm; Inner Corten 3.0 mm

Outer: Corten 6.0 mm; Inner Corten 8.0 mm

Rear Corner Posts

Outer: Corten 6.0 mm; Inner Corten 3.0 mm

Outer: Corten 6.0 mm; Inner Corten 8.0 mm

End Rails

Corten 4.0 mm

Corten 4.0 mm

Side Top Rail

Corten 4.0 mm

Corten 4.0 mm

Side Bottom Rail

Corten 4.0 mm

Corten 4.0 mm
