OPEN TOP CONTAINERS

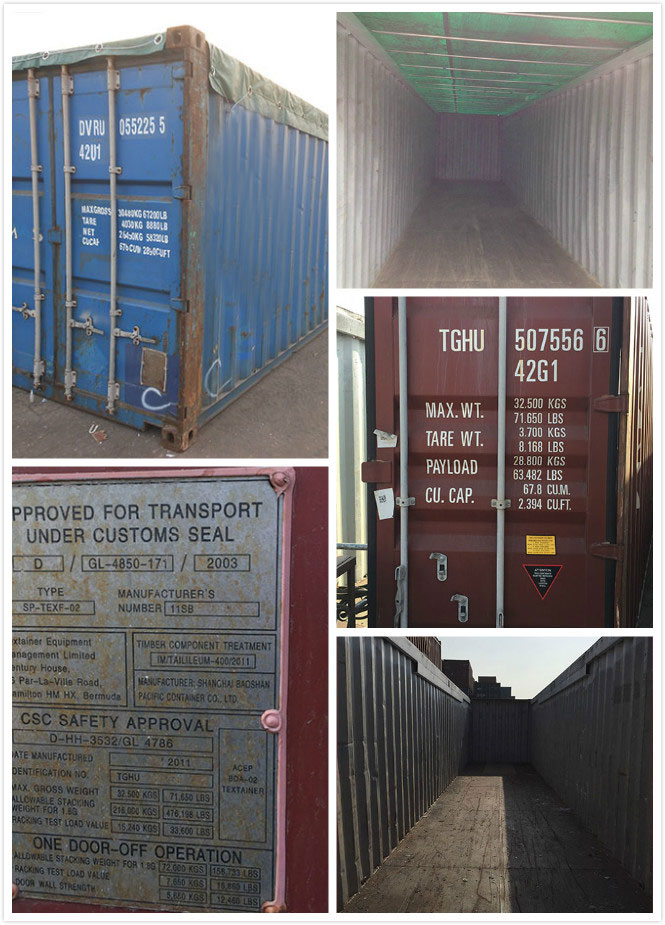

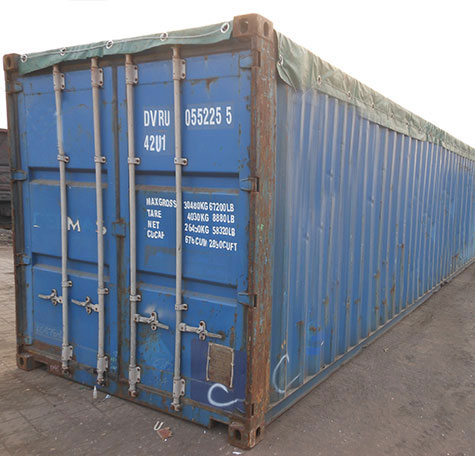

40' Opentop

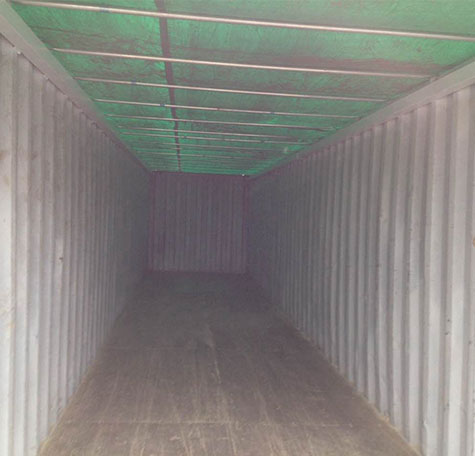

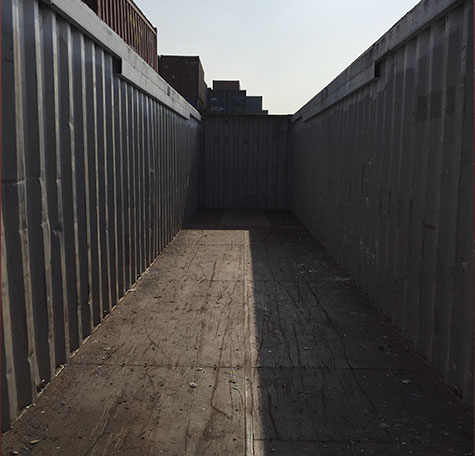

    Open top containers do not have a solid roof. A weather proof tarpaulin is used, that can be secured with ropes and cable sealing devices. Open tops are designed specially for over height (out of gauge) or bulky cargo. The open top allows cargo, such as machinery, to be loaded with a crane. They are also equipped with rings on the inside to secure cargo with straps for transit.

    Preview：Open top container features&specification

  • Download PDF
Features Benefits
All corten construction and high grade paint system Higher performance and lower maintenance
High strength top rails Provide additional damage resistance and large top opening
All panels are 2.0t thick Stronger and more impact resistant
Swinging/removal rear header Allow full and unrestricted cargo access through the rear of the container
Standardized heavy duty tarpaulin Full protection of cargo and lower maintenance costs
Stainless steel door holdback Stronger than nylon door holdbacks. Minimize need for replacement of lost or damaged door holdbacks

Double “Z” section bottom rails

Stronger than conventional “C” section bottom rails and eliminates maintenance of side floor rails
Standard size 19 ply hardwood floor boards with unexposed floor center rail Unexposed floor center rail minimizes corrosion
Crossmembers with extended top flange, extended rear sill top flange, open section tunnel bolster, unexposed floor center rail Designed to minimize damages to floor and associated components and facilitate repairs

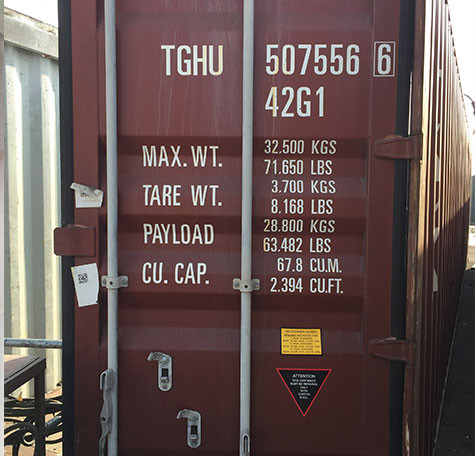

Ratings

(20ft)

(40ft)

Maximum Gross Weight

30,480 kgs (67,200 lbs)

30,480 kgs (67,200 lbs)

Tare Weight

2,350 kgs (4,982 lbs)

3,950 kgs (8,774 lbs)

Payload

28,130 kgs (62,218 lbs)

26,530 kgs (58,426 lbs)

External Dimensions

Length

6,058 mm (19’‐10 1/2”+0/‐1/4”)

12,192 mm (40’‐0”+0/‐1/4”)

Width

2,438 mm (8’‐0”+0/‐3/16”)

2,438 mm (8’‐0”+0/‐3/16”)

Height

2,591 mm (8’‐6”+0/‐3/16”)

2,591 mm (8’‐6”+0/‐3/16”)

Internal Dimensions

Length

5,899 mm (19’‐4 ‐ 1/4”)

12,024 mm (39’‐5 3/8”)

Top Aperture Length

5,787 mm (18’‐11 ‐ 13/16”)

11,809 mm (38’‐8 15/16”)

Width

2,352 mm (7’‐8 ‐ 19/32”)

2,350 mm (7’‐8 9/16”)

Top Aperture Width

2,250 mm (7’‐4 ‐ 5/8”)

2,230 mm (7’‐3 7/8”)

Height

2,351 mm (7’‐8 ‐ 1/2”)

2,351 mm (7’‐8 1/2”)

Door Opening

Width

2,340 mm (7’8‐1/8”)

2,338 mm (7’‐8”)

Height

2,295 mm (7’5‐7/8”)

2,279 mm (7’‐5 3/4”)

Cube

Cubic Capacity

32.2m3 (1,137 ft3)

67.0 m3 (2,366 ft3)

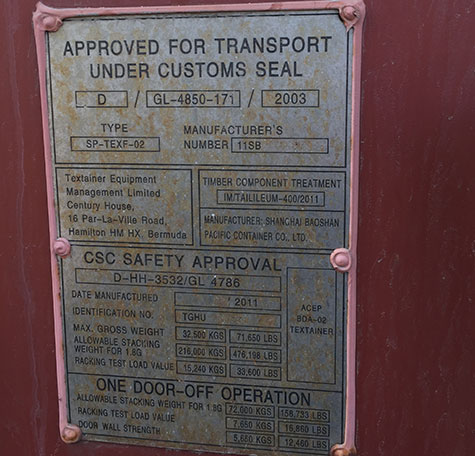

Test Loads

Stacking

97,200 kgs (214,290 lbs)

97,200 kgs (214,290 lbs)

Transverse Racking

15,240 kgs (33,600 lbs)

15,240 kgs (33,600 lbs)

Longitudinal Racking

7,620 kgs (16,800 lbs)

7,620 kgs (16,800 lbs)

Floor Strength

7,260 kgs (16,000 lbs)

7,260 kgs (16,000 lbs)
