DRY CONTAINERS

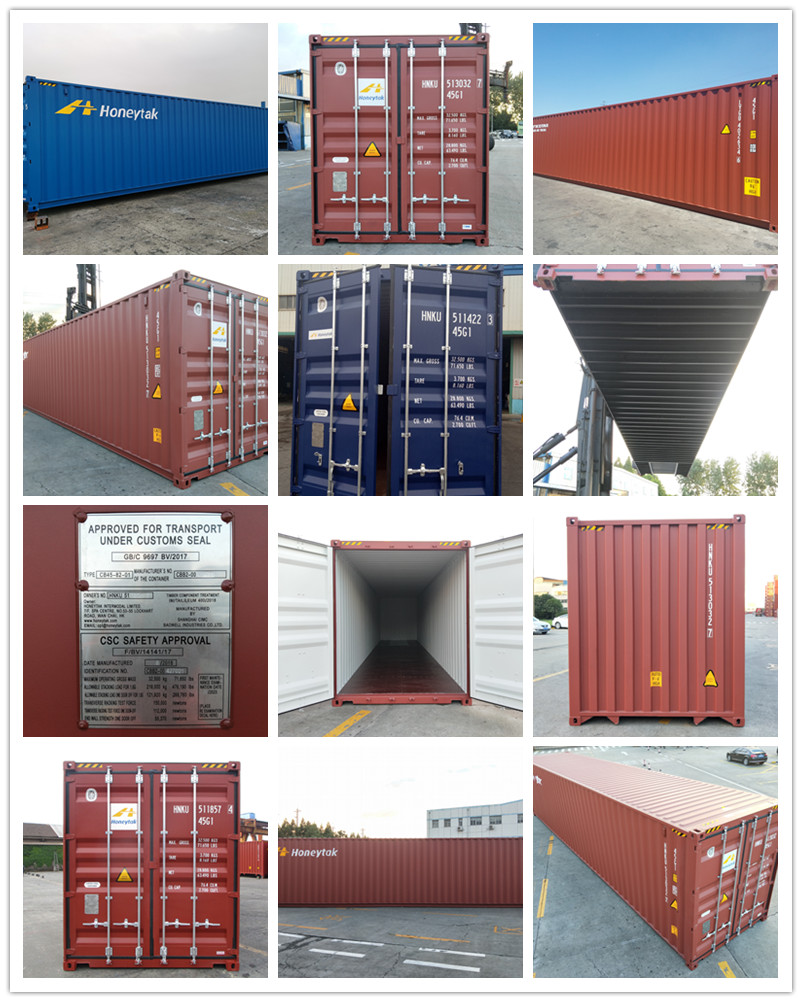

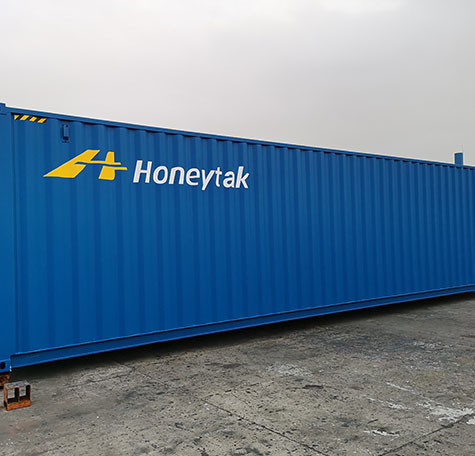

40' High Cube

    Especially for light, voluminous cargo and overheight cargo up to max 2.70 m(8’ 10 1/4”). - Numerous lashing devices on the top and bottom longitudinal rails and the corner posts. - Lashing devices have a permissible load of 1 000 kg (2 205 lbs.) each. Consider overheight for inland transportation. Note permissible weight limits for road and rail transport.

    Preview：Gerneral container features&specification


  • Download PDF
Features Benefits
Corten steel construction and high grade paint systems for exterior and interior Longer life and higher performance of container coatings
Stringent on line quality control program Ensures consistency of manufacturing and quality
Recessed areas on front and rear sills Avoid frequent damages to front and rear sills from chassis twist locks
Double “Z” section bottom rails Stronger than “C” section bottom rails, eliminates need and maintenance of side floor rails
Thicker crossmember than general--large one 6.0mm thick ,small one 4.5mm thick
 		Higher strength understructure
Thicker gooseneck tunnel plate than general-4.5mm thick
 		Higher strength than general
Reinforced bottom rails at lower corner castings Avoid frequent damages to bottom rails from chassis twist locks
Upgraded stacking capabilities: 8 high at 30 Tons; 10 high 24 Tons
 		More flexibility in vessel stowage with no tare weight penalty
Vertically oriented fleet numbers and decals installed in recess corrugation
 		Protection of fleet numbers from handling damages to avoid decal replacements
Modified "C" type lower door gasket Minimize moisture retention between door and gasket to avoid
corrosion
Door corrugation profile matching profile of side wall corrugation
 		Ease of repairs by adopting standard profiles
Stainless steel door holdback  Stronger than nylon door holdbacks. Minimize need for replacement of lost or damaged door holdbacks
Open section front header sections  Better corrosion protection and easier to repair
Open section tunnel bolster
 Better corrosion protection easier to repair than boxed section
Extended rear sill top flange Minimizes floor damages from (forklift) handling equipment
Unexposed floor center rail
 Minimize damages, corrosion and repairs to floor center rail
Standard floor board sizes Interchangeability of most floor boards between 20ft and 40ft floors

Ratings

20' Standard

40' Standard

40' High Cube

45' High Cube

Maximum Gross Weight

30,480 kg (67,200 lb.)

32,500 kg (71,650 lb.)

32,500 kg (71,650 lb.)

32,500 kg (71,650 lb.)

Tare Weight

2,180 kg ( 4,800 lb.)

3,700 kg ( 8,168 lb.)

3,890 kg ( 8,587 lb.)

4,700 kg (10,360 lb.)

Payload

28,300 kg (62,400 lb.)

28,800 kg (63,482 lb.)

28,610 kg (63,063 lb.)

27,800 kg (61,290 lb.)

External Dimensions

Length

6,058 mm (19'-10½")

12,192 mm (40'-0")

12,192 mm (40'-0")

13,716 mm (45'-0")

Width

2,438 mm (8'-0")

2,438 mm (8'-0")

2,438 mm (8'-0")

2,438 mm (8'-0")

Height

2,591 mm (8'-6")

2,591 mm (8'-6")

2,896 mm (9'-6")

2,896 mm (9'-6")

Internal Dimensions

Length

5,900 mm (19'-4¼")

12,025 mm (39'-5½")

12,025 mm (39'-5½")

13,556 mm (44'-5 11/16")

Width

2,348 mm (7'-8½")

2,348 mm (7'-8½")

2,348 mm (7'-8½")

2,352 mm (7'-8 9/16")

Height

2,385 mm (7'-9 7/8")

2,385 mm (7'-9 7/8")

2,690 mm (8'-9 7/8")

2,698 mm (8'-10 1/4")

Door Opening

Width

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

2,340 mm (7'-8 1/8")

Height

2,275 mm (7'-5 5/8")

2,275 mm (7'-5 5/8")

2,578 mm (8'-5½")

2,585 mm (8'-5 13/16")

Cube Capacity

33.04 m³ (1,166 ft.³)

67.34 m³ (2,377 ft.³)

75.95 m³ (2,681 ft.³)

86.0 m³ (3,040 ft.³)

Test Loads

Stacking

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

97,200 kg (214,290 lb.)

Transverse Racking

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

15,240 kg ( 33,600 lb.)

Longitudinal Racking

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

7,620 kg ( 16,800 lb.)

Floor Strength

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)

7,260 kg ( 16,000 lb.)
